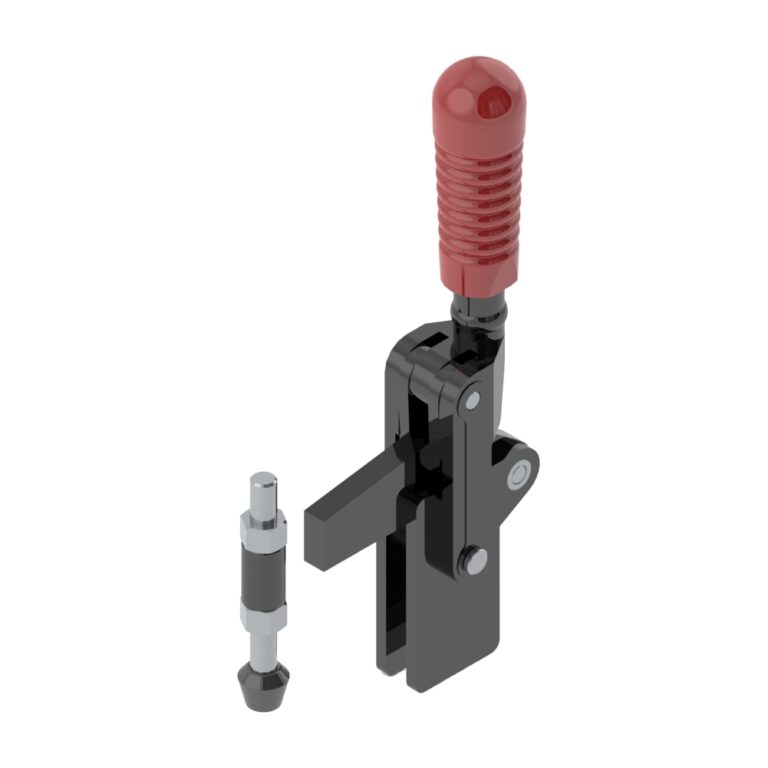

HV-1200-1A

Click on image for Large Preview

Click on image for Large Preview

Downloads

Product Attributes

Model No.

HV-1200-1A

Type

H.V. Series Toggle Clamps Straight Base

Material

Steel

Finish

Black ED* Coating

Arm Type

Solid Arm

Base Type

Straight Base

Handle Opening (± 3°)

131°

Clamp Bar Opening (± 3°)

207°

Holding Capacity

11.80 kN

Length

99.00 mm

Width

24.00 mm

Height

298.00 mm

Weight

1.960 Kgs

Supplied with Spindle

RT-12115-2N
